How to label compressed gas cylinders for OSHA compliance

Last updated 2026-07-09

What OSHA standards actually govern compressed gas cylinder labels?

Two standards do most of the work here. Know both.

The primary rule is 29 CFR 1910.1200, OSHA's Hazard Communication Standard (HazCom), which follows the Globally Harmonized System of Classification and Labelling of Chemicals (GHS). This regulation tells you exactly what a label must contain, and it covers nearly every hazardous chemical in the workplace, compressed gases included. ^[1]

The second standard is 29 CFR 1910.101, which applies specifically to compressed gas cylinders in general industry. It requires that cylinders be handled and stored safely and that the contents be clearly identified. 1910.101(b) says cylinders must "be legibly marked to clearly identify the gas contained." ^[2] That sentence sounds simple. But it's the hook OSHA inspectors use when a cylinder shows up on your floor with a worn or missing label.

For shops doing compressed gas work under maritime or construction, the analogous standards are 29 CFR 1915.1200 and 29 CFR 1926.59 respectively, both of which mirror the general industry HazCom requirements almost exactly.

You'll also hear references to DOT regulations (49 CFR Parts 171-180) because DOT controls the labeling of cylinders in transit. Once a cylinder arrives at your facility and sits in your inventory, OSHA takes over. The two systems overlap but aren't identical, so a DOT shipping label alone does not satisfy OSHA's workplace labeling requirement. ^[3]

If you're building a written hazard communication program, which you're required to have, your program must explicitly address how you manage incoming container labels and what you do when one is damaged or missing.

What information must appear on a compressed gas cylinder label?

Under 29 CFR 1910.1200(f), every label on a shipped container of hazardous chemicals must include six elements. Compressed gas cylinders count as shipped containers, so all six apply. ^[1]

1. Product identifier. This is the name or number that matches the Safety Data Sheet (SDS). For cylinders, it's almost always the chemical name or common name of the gas: acetylene, oxygen, nitrogen, argon, carbon dioxide, and so on. Trade names are fine as long as the SDS cross-references them.

2. Pictogram(s). GHS uses a set of standardized red-bordered diamond symbols. Compressed gases require the gas cylinder pictogram (a cylinder with a valve). Flammable gases like acetylene also need the flame pictogram. Oxidizers like oxygen get the flame-over-circle. Asphyxiants like nitrogen sometimes carry the exclamation mark. ^[1]

3. Signal word. Either "Danger" (higher hazard) or "Warning" (lower hazard). Flammable or high-pressure gases almost always get "Danger."

4. Hazard statement(s). These are standardized phrases assigned by the GHS classification system, such as "Contains gas under pressure; may explode if heated" or "Flammable gas."

5. Precautionary statement(s). Instructions for safe handling, storage, and emergency response. For compressed gases these typically cover keeping away from heat, storing in ventilated areas, and using proper PPE.

6. Supplier information. The name, address, and telephone number of the manufacturer, importer, or other responsible party.

The label must be in English (additional languages are allowed alongside English). It has to be legible and prominently displayed on the cylinder. OSHA does not specify a minimum font size, but the rule says the label must be prominently placed and legible. If an inspector has to squint, you're already in trouble.

Which GHS pictograms are required for common compressed gases?

The pictogram requirement is where a lot of small shops slip up, usually by under-labeling. Here's a practical breakdown by gas type.

Gas	GHS Pictogram(s) Required	Signal Word
Oxygen	Gas cylinder, Flame over circle (oxidizer)	Danger
Acetylene	Gas cylinder, Flame	Danger
Propane / LPG	Gas cylinder, Flame	Danger
Argon	Gas cylinder	Warning
Nitrogen	Gas cylinder	Warning
Carbon dioxide	Gas cylinder	Warning
Hydrogen	Gas cylinder, Flame	Danger
Chlorine	Gas cylinder, Skull/crossbones, Corrosion, Exclamation mark, Health hazard	Danger
Ammonia	Gas cylinder, Flame, Corrosion, Exclamation mark, Health hazard	Danger

This table is a starting point, not a substitute for reading the actual SDS for your specific product. Some gas mixtures carry additional classifications. Your supplier's SDS is the authoritative source for the correct GHS classification of the product they sell you.

One thing that catches people: the GHS gas cylinder pictogram (the red-bordered diamond with a cylinder image) is required for ALL compressed gases, including the ones that seem completely benign like argon and nitrogen. The pressure hazard alone triggers that pictogram. ^[1]

Can you ever remove or cover a compressed gas cylinder label?

No. OSHA is explicit under 29 CFR 1910.1200(f)(9): "Employers shall not remove or deface existing labels on incoming containers of hazardous chemicals, unless the container is immediately marked with the required information." ^[1]

In practice this means a few things. If a cylinder arrives with its original supplier label intact, leave it alone. If a label is so damaged that it's unreadable, you need to replace it with a label that carries all six required GHS elements before that cylinder goes back into service. You can't just write the gas name in marker and call it compliant, because a handwritten note doesn't satisfy the pictogram, signal word, or supplier information requirements.

If your operation transfers gas from one container to another (say, filling smaller cylinders from a bulk supply), those secondary containers need labels too. The exception is when you fill a portable container and the worker who fills it will use it immediately and completely during the same work shift. That's the "immediate use" exemption under 1910.1200(f)(8), and it's narrower than most people think. It doesn't cover cylinders that get set aside for later.

For cylinders that are completely empty and out of service, OSHA still recommends keeping labels intact. Most gas suppliers and cylinder rental agreements require this anyway.

What are the rules for cylinders your company fills or relabels in-house?

If your facility transfers compressed gases into cylinders or carts, you become the labeling responsible party for those containers. You have to apply a GHS-compliant label that meets all six requirements of 1910.1200(f). ^[1]

This comes up most often in welding shops, food-processing operations that use CO2 or nitrogen, and facilities with bulk gas systems. If you're just connecting a cylinder to a fixed line and the cylinder doesn't move, the label question is simpler. But if that cylinder (or cart) moves through your facility, other workers may run into it without any context, and that's exactly the hazard HazCom is built to address.

Your written HazCom program needs a procedure for in-house labeling. OSHA's 1910.1200(f)(7) says employers may use an alternative labeling system (like the NFPA 704 diamond or HMIS) for workplace containers, but only if employees have immediate access to the required hazard information and the system is explained in your written program. Most small businesses are better off using GHS-compliant labels, because the alternatives require extra training and documentation to defend during an inspection.

Good label stock rated for industrial environments is cheap. Cylinder label kits from industrial suppliers typically run $30 to $100 for a set covering common gases. The cost of a "serious" OSHA citation for a missing label is up to $16,131 per instance as of 2024. ^[4]

How does OSHA enforce compressed gas cylinder labeling, and what are the penalties?

OSHA inspectors look at cylinders during any general inspection, not only a targeted HazCom inspection. Unlabeled or defaced cylinders are visible, easy to document, and easy to cite.

Citations for labeling failures typically fall under 29 CFR 1910.1200(f) as "serious" violations, meaning OSHA determined the violation could cause serious physical harm or death and the employer knew or should have known about it. As of the January 2024 adjustment, serious violations carry a maximum penalty of $16,131 per violation. Willful or repeated violations go up to $161,323 each. ^[4]

Hazard Communication is one of OSHA's top-ten most cited standards almost every year. In fiscal year 2023, it ranked second, with 3,213 violations cited across all industries. ^[5] Cylinder labeling is a subset of HazCom citations, so it shows up inside that number.

OSHA's multi-employer citation policy also matters for small businesses that share space or lend cylinders to contractors. If a contractor brings an unlabeled cylinder onto your site, you can be cited as the controlling employer if you knew about the condition and didn't correct it. That's a real exposure for construction and manufacturing shops.

The best defense during an inspection is having your written HazCom program on-site, being able to show the inspector your SDS file for every gas you use, and keeping cylinders visibly labeled in storage and in use. If an inspector asks and you can pull the SDS for your argon cylinder in 30 seconds, that goes a long way.

What's the difference between the DOT label on a cylinder and the OSHA label?

This distinction trips up a lot of small business owners, so let's be clear about it.

DOT regulates the transport of hazardous materials under 49 CFR. DOT labels (the solid-color diamonds you see on cylinders) exist to communicate hazard class to emergency responders during shipping. They use a different classification system than GHS. A DOT "Non-Flammable Gas" label (green diamond, Class 2.2) tells a firefighter what to expect if a truck crashes. It doesn't tell your welder about chronic health effects, required PPE, or first aid. ^[3]

OSHA's GHS label is built for workers on the floor. It gives detailed hazard information in a standardized format employees can actually use to protect themselves. The GHS label includes precautionary statements and emergency response information that DOT labels simply don't carry.

When a cylinder arrives at your dock with DOT markings, those markings were required for the trip. Once the cylinder is in your inventory, OSHA requires the GHS-compliant label. In most cases, your supplier will have already applied a GHS label alongside the DOT markings, and you just need to make sure it's still intact and readable. If the GHS label is missing or damaged on arrival, contact your supplier for a replacement SDS and label before putting the cylinder into service.

Some cylinders from established gas suppliers come with permanently stenciled or stamped product identification plus a paper or adhesive GHS label. If the paper label falls off in your storage yard, the stencil alone is not enough to meet 1910.1200(f) because it won't have pictograms, signal words, or precautionary statements.

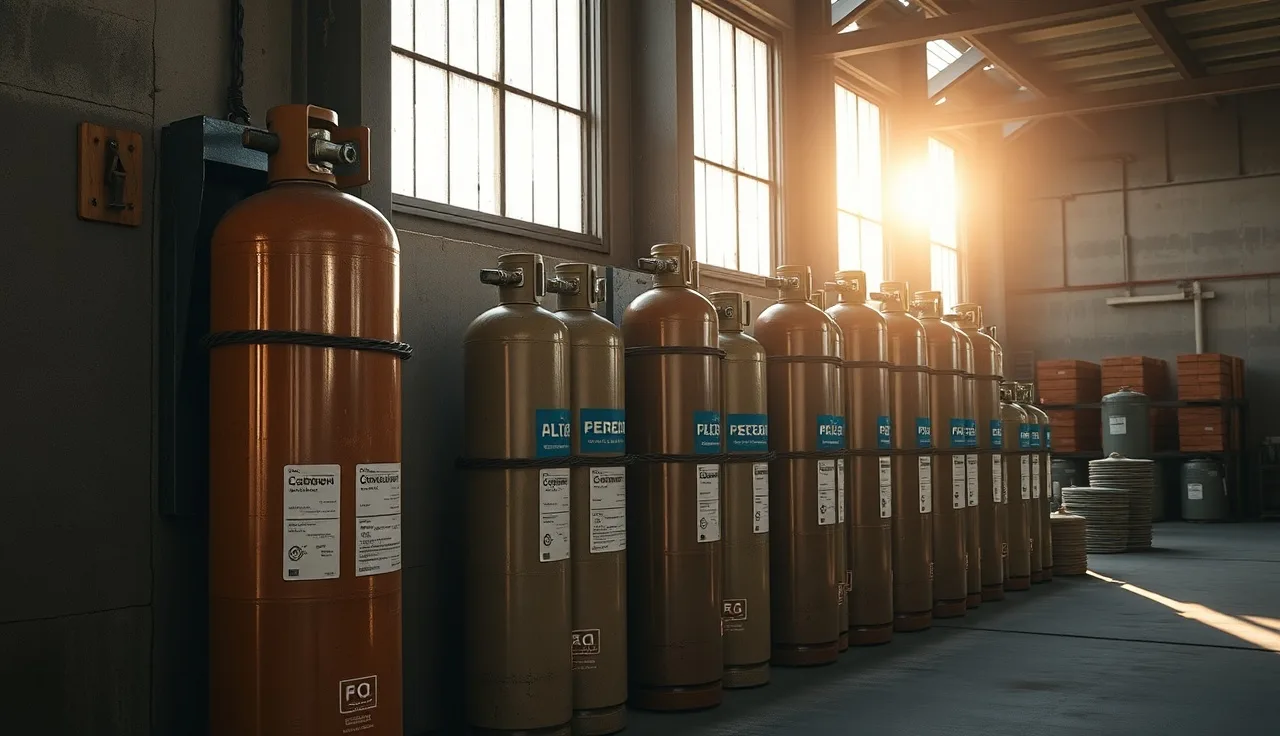

How should you store and segregate labeled cylinders to stay compliant?

Labeling and storage are connected in OSHA's framework. 29 CFR 1910.101(b) requires that stored cylinders be secured and clearly identified. ^[2] A label does you no good if the cylinder is lying on its side behind a shelf where nobody can read it.

Practical storage requirements that tie back to labeling compliance:

Keep cylinders upright and secured with a chain or bracket. This keeps the label visible and protects the valve, which is the primary pressure-relief point.

Segregate by hazard class. Oxidizers (oxygen) must be stored at least 20 feet from flammables (acetylene, hydrogen, propane) or separated by a fire-resistant wall at least five feet high with a 30-minute fire rating. This comes from Compressed Gas Association guidelines and OSHA's 1910.101 framework, not an arbitrary rule. ^[6]

Segregate full from empty cylinders, and label empty cylinders as "Empty" or "MT." An unlabeled empty cylinder that someone assumes is full is a different kind of hazard, but still a problem during an inspection.

Post a storage area sign that identifies the gases present. This is above and beyond the cylinder label itself, but it helps employees and emergency responders orient fast.

For any facility with a more involved gas program, including written procedures for cylinder receipt, inspection, storage rotation, and retirement, your HazCom written program is the place to document all of this. If you need to build or update that program quickly, a tool like SafetyFolio can generate a written HazCom program with compressed gas procedures in about 15 minutes instead of starting from a blank page.

What should you do if a cylinder arrives with a damaged or missing label?

Don't put the cylinder into service. That's the short answer.

Under 1910.1200(f)(9), you can't use a cylinder whose label has been removed or defaced unless you immediately re-label it with all required information. ^[1] The practical steps:

First, contact your supplier. Gas suppliers are responsible for providing GHS-compliant labels on shipped containers. Most will send a replacement label or SDS within a business day. Some have label sheets available for download on their websites keyed to your account.

Second, quarantine the cylinder. Tag it with a "Do Not Use" tag and set it aside in a designated area. If you have a lockout tagout program, this is a good place to use a similar administrative hold procedure, even though LOTO doesn't formally apply to cylinder labeling.

Third, once you have the correct label information from the SDS, apply a compliant label before returning the cylinder to service. The label must include all six GHS elements. Pre-printed GHS label kits for common industrial gases are sold by safety supply houses.

Fourth, document what happened. Note the date, the cylinder, the issue, and how you resolved it. If OSHA ever audits you and asks about your labeling process, this documentation shows a good-faith system rather than negligence.

If you find a cylinder in your facility and genuinely can't identify the contents because the label is completely gone and there are no markings, treat it as an unknown hazardous material. Don't try to smell or test it. Contact your gas supplier or a hazmat contractor. An unknown compressed gas cylinder is a serious hazard.

Do small businesses get any breaks on compressed gas labeling requirements?

No. OSHA's HazCom labeling requirements apply to any employer with at least one employee who is exposed to hazardous chemicals in the workplace. ^[1] Compressed gases are hazardous chemicals. There is no small-business exemption.

That said, OSHA's compliance assistance is free. OSHA's On-Site Consultation Program (separate from enforcement) offers free confidential visits to small businesses to help them find and fix hazards before an inspection. The service runs through state agencies and is available in every state. Findings from a consultation visit can't be used against you in a later enforcement inspection as long as you fix identified hazards. ^[7]

OSHA also publishes a free QuickCard on HazCom labeling and has the full GHS Quick Card available as a printable PDF. These are worth having on your safety board.

The realistic compliance cost for a small shop is low. A complete set of GHS-compliant cylinder labels for the five or six gases most small manufacturers use runs well under $200 total. The written HazCom program is where small businesses spend the most time, but that's a one-time document with annual updates.

For context on what OSHA generally requires in writing, the broader OSHA training framework helps you see which written programs and training records you're also responsible for keeping alongside your labeling documentation.

How do you train employees on compressed gas cylinder labels?

The HazCom standard requires that employees be trained to understand GHS labels before they work with or around hazardous chemicals. ^[1] For compressed gases, training must cover:

How to read each label element: what the pictogram means, what the signal word indicates, and how to act on the precautionary statements.

Where to find the SDS for each gas used in the facility, and how to read the SDS for emergency response information.

What to do if a label is missing, damaged, or unreadable (the quarantine procedure described above).

The physical hazards specific to compressed gases: pressure, cold burns from cryogenic gases, asphyxiation risks from inert gases in enclosed spaces, and fire or explosion risks from flammables.

OSHA doesn't require a minimum number of hours for HazCom training or a specific format, but it does require training to be "effective," meaning employees must actually understand the material, more than sit through a video. Documenting training with sign-in sheets and a brief competency check (a few verbal or written questions) is the standard way to show effectiveness during an inspection.

New employees must be trained before their first assignment. Retraining is required when a new hazard is introduced or when there's reason to believe an employee doesn't understand the label system. Annual refresher training isn't explicitly required by OSHA, but it's a defensible practice.

If your team includes workers whose primary language isn't English, OSHA's position (documented in letters of interpretation) is that training must be conducted in a language and vocabulary the employees understand. Labels must be in English, but supplementary materials can and should be bilingual. ^[10]

What records do you need to keep related to cylinder labeling?

OSHA's HazCom standard doesn't require you to keep labeling records as such, but your written HazCom program must describe your labeling system and procedures, and you need to show that system is actually running. ^[1]

The practical records that protect you during an inspection:

Your written HazCom program, which must include your labeling procedures for incoming cylinders, workplace containers, and in-house transfers.

Your SDS file, with a current SDS for every hazardous chemical (including every gas) in your workplace. SDSs must be immediately accessible to employees during their work shifts. A binder in the storage area and a digital backup are both common approaches.

Employee training records: names, dates, and topic covered. Keep these for at least three years as a practical matter, even though HazCom doesn't specify a retention period.

If you receive cylinders through a rental or lease program, the rental agreement itself is worth keeping because it often spells out the supplier's labeling responsibilities, which can matter if a cylinder arrives unlabeled and there's a dispute.

For facilities that also have an incident report obligation under OSHA's recordkeeping rules, a gas-related incident (leak, fire, or asphyxiation event) that causes a recordable injury would generate a separate record, but that's a different set of requirements from the labeling documentation.

Frequently asked questions

Do empty compressed gas cylinders still need to be labeled?

Yes, keep the label on empty cylinders. OSHA's 1910.1200(f)(9) prohibits removing or defacing labels on containers of hazardous chemicals, and a cylinder retains residual gas and pressure even when considered 'empty.' Most gas suppliers require labels to stay on returned cylinders under their rental terms. At minimum, mark an empty cylinder as 'Empty' or 'MT' so workers don't assume otherwise.

Can I use a color-coded cap system instead of a GHS label?

No, not as a standalone substitute. Color-coding systems like CGA valve connection standards or color-coded caps help identify gas type quickly, but they don't meet the six-element GHS label requirement under 29 CFR 1910.1200(f). You still need the product identifier, pictograms, signal word, hazard statements, precautionary statements, and supplier contact info on the cylinder body. Color coding can supplement your labeling system but can't replace it.

What if my supplier's label is in a foreign language?

OSHA requires that workplace chemical labels be in English. If a cylinder arrives with a label only in another language, you need to either replace it with an English-language GHS label or add an English overlay with all six required elements before putting the cylinder in service. Keeping a foreign-language-only label in a U.S. workplace doesn't meet 1910.1200(f), regardless of whether the gas is otherwise well-known.

How often do compressed gas cylinder labels need to be replaced or inspected?

OSHA doesn't set a specific inspection interval for cylinder labels, but your written HazCom program should include a process for checking label condition when cylinders arrive and periodically in storage. A practical approach: inspect labels during your monthly or quarterly safety walk. Replace any label that's torn, illegible, or peeling before that cylinder goes back into service. Outdoor storage accelerates label degradation, so increase inspection frequency for cylinders stored outside.

Is nitrogen a hazardous chemical that needs a full GHS label?

Yes. Nitrogen is classified as a simple asphyxiant under GHS and requires the gas cylinder pictogram and at minimum a 'Warning' signal word. More critically, nitrogen under pressure presents a serious explosion risk if heated. In confined spaces, nitrogen displacement of oxygen is a genuine life-safety hazard responsible for multiple fatalities each year. A full GHS-compliant label is required on nitrogen cylinders regardless of the gas's inert reputation.

Who is responsible for labeling cylinders, the supplier or the employer?

Both, in sequence. Chemical manufacturers and importers are responsible for applying GHS-compliant labels before shipping containers. Employers are responsible for ensuring incoming labels are intact and maintaining them in the workplace. Under 1910.1200(f)(9), employers cannot remove or deface existing labels. If a cylinder arrives without a proper label, the employer must get the correct information from the SDS and re-label before use.

What is the fine for an unlabeled compressed gas cylinder?

As of the January 2024 OSHA penalty adjustment, a 'serious' violation (the typical classification for a missing label) carries a maximum of $16,131 per violation. Willful or repeated violations go up to $161,323 each. Multiple cylinders cited in one inspection can each count as a separate violation. OSHA penalty amounts are adjusted annually for inflation under the Federal Civil Penalties Inflation Adjustment Act.

Do compressed gas cylinders used only for welding need GHS labels?

Yes. Welding gases like oxygen, acetylene, and argon are fully covered by 29 CFR 1910.1200 and 29 CFR 1910.101. The welding exemption in HazCom (1910.1200(b)(6)(vii)) covers articles and certain manufactured items, not industrial gases. Welding shops are among the most commonly cited workplaces for compressed gas hazards. All cylinders must carry compliant GHS labels regardless of their application.

What's the 'immediate use' exemption and does it apply to compressed gas cylinders?

The immediate use exemption under 29 CFR 1910.1200(f)(8) allows an unlabeled portable container if it's filled by the employee who will use it immediately and completely during that same shift. For most compressed gas operations this exemption rarely applies because workers rarely empty a full cylinder in a single shift. It might apply to a small aerosol transfer but almost never to a standard industrial cylinder. Don't rely on this exemption for cylinder operations.

Can I write the gas name in permanent marker on a cylinder instead of using a printed label?

No. A handwritten name satisfies only the 'product identifier' element of the six-element GHS label requirement. You still need pictograms (which can't be hand-drawn to GHS spec), a signal word, hazard statements, precautionary statements, and supplier contact information. A handwritten cylinder would fail an OSHA inspection. Use pre-printed GHS-compliant labels, which are sold by safety suppliers for common gases at low cost.

How do OSHA's compressed gas cylinder labeling rules interact with DOT regulations?

DOT (49 CFR) controls labeling during transport; OSHA (29 CFR 1910.1200 and 1910.101) controls labeling in the workplace. A DOT shipping label alone doesn't satisfy OSHA's GHS labeling requirement because it uses a different classification system and doesn't include the precautionary statements and supplier information OSHA requires. In practice, most cylinders arrive with both DOT and GHS labels applied by the supplier. Once at your site, maintain the GHS label.

Does my written HazCom program need to address compressed gas specifically?

Your written HazCom program must describe your labeling system for all hazardous chemicals, which includes compressed gases. OSHA doesn't require a separate section specifically for cylinders, but your program should explain how incoming cylinders are inspected for labeling, how employees access SDSs for gases, what happens when a label is damaged, and any in-house container labeling procedures. OSHA inspectors will ask to see this program and check that actual practice matches what it says.

Are there any gases exempt from the OSHA cylinder labeling requirements?

Very few. Hazardous wastes regulated by EPA, tobacco products, wood or wood products, food and drugs regulated by FDA, and consumer products used the same way a consumer would use them are exempt from HazCom. None of these exemptions apply to industrial compressed gases. Virtually all compressed gases you'll encounter in a commercial workplace, including common ones like CO2 and nitrogen, are covered and require compliant labeling.

Sources

1. OSHA, 29 CFR 1910.1200 Hazard Communication Standard: Six required GHS label elements for shipped containers of hazardous chemicals, prohibition on removing or defacing labels, and training requirements.
2. OSHA, 29 CFR 1910.101 Compressed Gases (General Requirements): Cylinders must be legibly marked to clearly identify the gas contained and handled/stored safely.
3. PHMSA / DOT, 49 CFR Parts 171-180 Hazardous Materials Regulations: DOT labeling system for compressed gases in transport uses different classifications than GHS and does not satisfy OSHA's workplace labeling requirement.
4. OSHA, Penalties page, 2024 penalty adjustment: As of January 2024, maximum penalty for a serious OSHA violation is $16,131 per violation; willful or repeated violations up to $161,323.
5. OSHA, Top 10 Most Frequently Cited Standards FY 2023: Hazard Communication ranked second among most cited standards in FY2023, with 3,213 violations cited.
6. Compressed Gas Association, CGA P-1 Safe Handling of Compressed Gases: Oxidizer cylinders must be stored at least 20 feet from flammable gas cylinders or separated by a 5-foot fire-resistant wall with 30-minute fire rating.
7. OSHA, On-Site Consultation Program for small businesses: Free confidential consultation visits available to small businesses in every state; findings cannot be used in enforcement if hazards are corrected.
8. OSHA, Letters of Interpretation: HazCom training in languages other than English: OSHA's position that HazCom training must be conducted in a language and vocabulary employees understand, even if labels are required to be in English.
