TL;DR
OSHA requires every personal fall arrest anchor to support at least 5,000 pounds per attached worker, or be designed by a qualified person to a safety factor of two (29 CFR 1926.502). The anchor has to be independent of any surface the worker stands on. Clipping to the wrong thing is one of the most common fall citations OSHA writes, and falls kill more construction workers than anything else.
Why anchor points are the most cited part of fall protection
Falls kill more construction workers than any other hazard. The Bureau of Labor Statistics counted 395 fatal falls in construction in 2022, roughly 36% of all construction deaths that year [1]. OSHA cites fall protection more than any other standard, and when inspectors open those cases, the anchor is often the thing that failed. A worker can have a good harness, a rated lanyard, even a self-retracting lifeline, and still die because whatever they clipped to couldn't hold.
The rule sounds simple. Five thousand pounds per worker, or engineer it to a 2x safety factor. On real jobs, crews clip to ductwork, conduit straps, scaffold cross-members, and rebar that was never meant to catch a falling body. Some of those hold. Some don't. You don't find out which until the worst possible moment.
OSHA's construction standard, 29 CFR 1926.502(d)(15), puts it plainly: "Anchorages used for attachment of personal fall arrest equipment shall be independent of any anchorage being used to support or suspend platforms and capable of supporting at least 5,000 pounds (22.2 kN) per employee attached." [2] That's the whole rule. The rest of this article is about understanding it well enough to use it on a job that isn't a textbook.
What does '5,000 pounds' actually mean for an anchor?
The 5,000-pound number is a static load requirement. The anchor has to hold that much without failing. It is not the force a fall actually puts on the anchor. When a personal fall arrest system catches a worker, the peak arrest force on the anchor usually lands between 900 and 1,800 pounds, depending on the system components [10]. The 5,000-pound figure exists as margin: dynamic loading, corrosion, hidden defects in the structure, and the chance that somebody's math was wrong.
The other path, designing to a 2x safety factor, lets a qualified person (a licensed professional engineer, in practice) calculate the real anticipated arrest force and design an anchor rated to at least twice that. Both paths usually land in a similar place. The engineering path just adds documentation and a signature.
General industry uses slightly different wording. Under 29 CFR 1910.140(c)(13), anchorages must be "capable of supporting at least twice the maximum arresting force" or 5,000 pounds when that force isn't calculated [3]. Different phrasing, same destination.
Here's the part crews get wrong. The 5,000-pound rule is per worker attached. Two people tied to one anchor means that anchor needs to hold 10,000 pounds. Most pre-engineered anchors are tested and rated for one person. Check the manufacturer's rated capacity and how many workers that rating covers before anybody clips in.
What types of fall protection anchor points are available?
Anchors sort into a few broad families. Which one fits depends on your substrate, how long the work lasts, and whether the anchor needs to move with the worker.

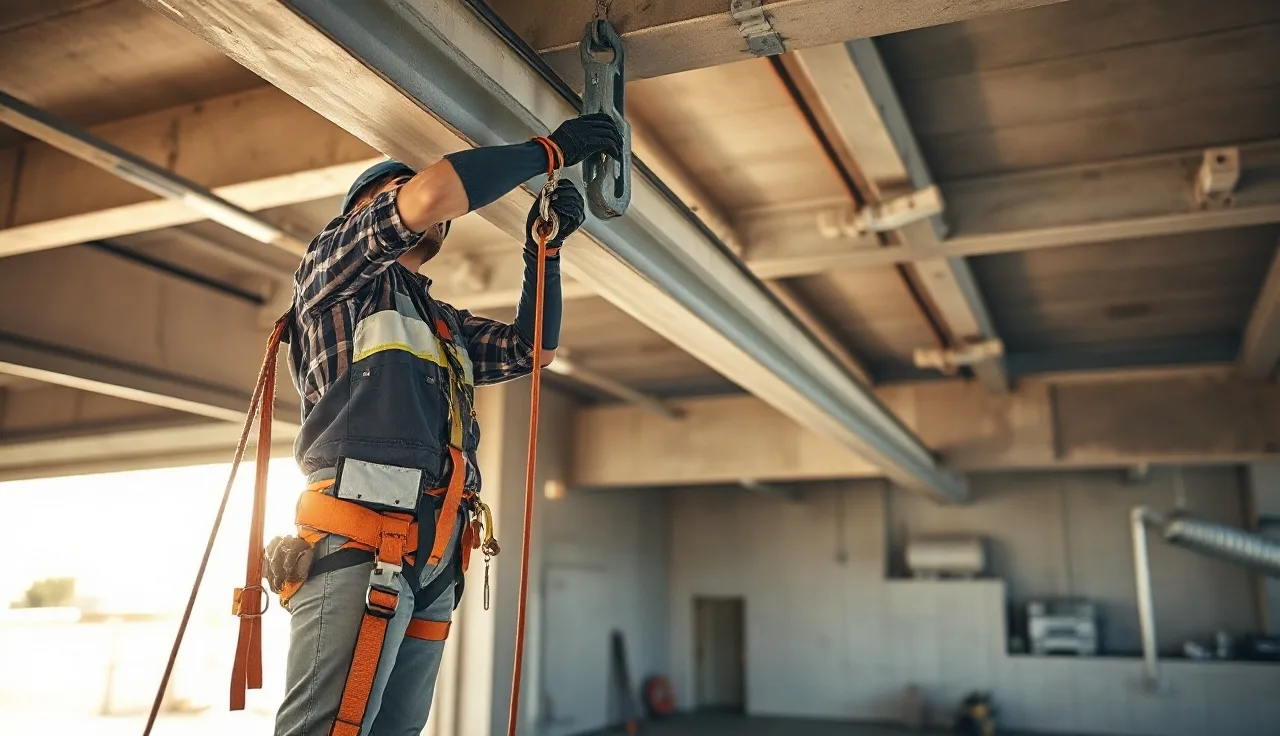

Structural steel anchors. Welded or bolted straight to a steel member, installed by a certified welder or ironworker to the beam web or flange. Permanent or semi-permanent, rated by the fabricator. This is the cleanest solution when structural steel is already exposed.
Concrete anchors. Wedge anchors, drop-in anchors, and adhesive anchors set in concrete. The hardware might carry a tensile rating north of 10,000 pounds, but the real capacity depends on concrete strength, embedment depth, edge distance, and spacing from other anchors. The concrete matters as much as the bolt. Pull-test these on-site when the concrete is any kind of question mark.
Roof anchors. Built for pitched or flat roofs, fastened to the structural deck or rafters. Some are temporary and come off after the job. Others stay for building maintenance access. OSHA allows temporary anchors, but they still have to hit the 5,000-pound bar.
Portable fall protection anchor points. Self-contained, freestanding, or strap-based anchors that don't need fastening to structure. Weighted sled anchors for flat roofs, I-beam clamps, and beam trolleys that let a worker slide along a beam while staying tied off. Convenient, and genuinely risky if a crew grabs the wrong product or uses the right one on the wrong surface. Verify the rated capacity for your specific substrate, and confirm the anchor won't tip or slide when a real fall loads it.
Horizontal lifeline systems. A system, not a single anchor, but it belongs here because the end terminations are anchors that carry much higher loads than a single-worker anchor. A loaded horizontal lifeline sags into a catenary angle, and that geometry multiplies the force on the end anchors hard [12]. A qualified person has to engineer horizontal lifeline end anchor capacity. You cannot default to 5,000 pounds per worker without the calculations.
| Anchor Type | Typical Rated Capacity | Key Limitation |
|---|---|---|
| Welded structural steel | 5,000+ lbs (engineered) | Requires certified welder, permanent |
| Concrete wedge anchor | 5,000-15,000 lbs (substrate-dependent) | Edge distance, concrete PSI critical |
| Roof anchor (through-bolted) | 5,000 lbs per worker (typical) | Must fasten to structural member, not decking only |
| Portable strap/clamp anchor | 3,600-5,000 lbs (varies by model) | Must verify substrate compatibility |
| Horizontal lifeline end anchor | Engineered (often 10,000-20,000+ lbs) | Requires qualified person design |
What makes an anchor point OSHA-compliant vs. non-compliant?
The most-cited bad anchors aren't exotic. They're the obvious stuff workers grab because it's right there.
Rebar is probably the most frequent offender. It's built for tensile strength inside concrete, not for catching a dynamic fall load. An exposed rebar stub might hold 5,000 pounds in a straight pull, but it's not tested, not certified, and usually not independent of the platform the worker stands on.
Pipe and conduit runs fail for the same reasons, and they're rarely fastened to structure in a way that holds an arrest load. A half-inch EMT conduit strap is not a fall protection anchor.
Scaffold members work as anchors only when a qualified person verifies that the scaffold and the specific attachment point can carry the arrest load on top of all scaffold loads, and that verification is written down. Most scaffold manufacturers do not certify individual tube-and-clamp joints as 5,000-pound personal fall arrest anchors.
Drop ceilings, light fixtures, sprinkler mains, and HVAC ductwork are out for reasons that don't need explaining. Crews tie off to them anyway, and it's rarely ignorance. It's schedule pressure plus no real anchor installed on that part of the job.
A compliant anchor has to be:
- Capable of the required load (5,000 lbs, or engineered to a 2x factor)
- Independent of the platform or surface the worker stands on
- Inspected before each use
- Positioned above the worker's dorsal D-ring when possible, to cut free-fall distance
- Documented in the site's fall protection plan when a plan is required
Do general industry and construction follow the same anchor rules?
Mostly yes. The load bar is identical. The CFR citations differ, and a few context-specific requirements come with each.
Construction sits under 29 CFR 1926 Subpart M. The anchor rule is 29 CFR 1926.502(d)(15): 5,000 pounds per worker, or designed to a 2x factor by a qualified person [2].
General industry personal fall protection sits under 29 CFR 1910.140, which OSHA rewrote in a final rule effective January 17, 2017 [3]. Section 1910.140(c)(13) sets the same threshold: support twice the maximum arresting force, or 5,000 pounds.
Maritime (29 CFR 1915 and 1917) and longshoring (29 CFR 1918) run their own standards. Shipyard or cargo work means checking those CFRs directly.
The practical split for most small businesses is the trigger height. General industry workplaces (warehouses, plants, commercial facilities) follow 1910.140 when workers face a fall hazard of 4 feet or more [9]. Construction triggers fall protection at 6 feet above a lower level. Roofing runs under the construction standards.
For OSHA purposes, confirm which standard covers your industry before you pick an anchor. An anchor marketed for construction may or may not carry a rating that fits a general industry application, even though the physics under both is the same.
How do you inspect a fall protection anchor before use?
Pre-use inspection is required, not optional. 29 CFR 1926.502(d)(21) requires personal fall arrest systems to be inspected before each use for wear, damage, and deterioration [2]. That inspection includes the anchor point, not only the harness and lanyard.
For a permanent structural anchor, look at:
- Weld integrity (cracks, porosity, incomplete fusion at the weld toe)
- Corrosion or rust past surface scale
- Deformation of the anchor ring, loop, or attachment point
- Any sign the anchor has been shock-loaded (a past fall stresses hardware enormously; anything that's arrested a fall comes out of service until a qualified person inspects it)
For concrete anchors, check:
- Tightness. A loose wedge anchor has lost its expansion and may have compromised grip
- The concrete around it for spider cracks, spalling, or moisture damage
- The anchor itself for corrosion or bent threads
For portable anchors, also verify:
- The rated capacity meets or beats your requirement
- The substrate you're attaching to is the substrate the anchor was rated for
- Cams, clamps, or straps are fully engaged and not slipping
- The anchor won't tip or travel under load if it's freestanding
Document the inspection. OSHA doesn't mandate a specific form, but if there's an incident and you can't show inspections happened, you're in a bad position. A handwritten log or a simple digital form with date, inspector name, and pass/fail per item does the job.
Don't have a written fall protection plan yet? SafetyFolio's safety program generator can produce the written program in about 15 minutes. The document doesn't replace someone on-site who knows the work, but it clears the biggest barrier: the blank page.
What is a 'qualified person' for anchor design and who counts?
"Qualified person" has a specific meaning in OSHA's rules. 29 CFR 1926.32(l) defines it as "one who, by possession of a recognized degree, certificate, or professional standing, or who by extensive knowledge, training, and experience, has successfully demonstrated his ability to solve or resolve problems relating to the subject matter, the work, or the project." [8]
For anchor engineering, that usually means a licensed professional engineer with structural or mechanical experience. OSHA also recognizes a "competent person" for on-site supervision, but a competent person is not a qualified person and can't independently certify anchor designs.
Here's the practical part. If you're using a pre-engineered, tested, certified anchor product, you don't need your own engineer. The manufacturer's test data, done to ANSI Z359 standards, covers that. Buy products tested and certified to the relevant Z359 series standard for your system type [4].
Where you actually need a PE: a custom anchor installation, sizing a horizontal lifeline, or adapting an existing structure with no obvious certified attachment. That review isn't cheap, usually $500 to $2,000 for a straightforward anchor design depending on complexity and your market. It's also not optional when the situation calls for it.
How far above the worker does the anchor need to be?
As high as you can get it above the worker's dorsal D-ring (the ring on the back of the harness, between the shoulder blades). OSHA doesn't set a specific minimum height above the D-ring in most general applications, but anchor position drives fall distance more than almost anything else.
Here's the math that matters. A standard 6-foot lanyard allows 6 feet of free fall. Add 3.5 feet for the deceleration device to deploy, about 1 foot of harness elongation, and 5 to 6 feet for the worker's height from feet to D-ring. You need roughly 16 feet of clearance below the anchor just to use a standard 6-foot lanyard safely. No 16 feet, no standard lanyard. You switch to a shorter lanyard, a self-retracting lifeline, or a shock-absorbing lanyard with a shorter deceleration distance.
Anchor height is also where the 4-foot general industry trigger and the 6-foot construction trigger create real differences on the floor. In a warehouse with 18-foot ceilings, a 4-foot fall hazard still requires protection, and the overhead point might be a ceiling-mounted anchor rail or a certified structural attachment [9].
Self-retracting lifelines are often the practical answer. A typical SRL arrests a fall within a foot or two of where it starts, which cuts clearance requirements sharply and makes overhead anchoring less of a bottleneck. The anchor still has to hold 5,000 pounds. And the SRL still mounts at or above D-ring level unless the manufacturer's instructions specifically allow sub-D-ring mounting.
Can you use a portable anchor on a flat roof?
Yes. For most commercial roofing or HVAC maintenance on a flat roof, a portable anchor is often the most practical option. Weighted sled anchors, magnetic anchors on steel decks, and strap-based anchors are all legitimate when they're rated correctly and matched to the substrate.
Weighted counterbalance anchors resist tipping under arrest force through their own mass. They don't penetrate the roof membrane, which is why waterproofing crews like them. The catch: the rating assumes the manufacturer's exact weight configuration, a specific attachment height, and often a maximum worker weight. Don't strip weight off because it's heavy to carry up the ladder. Don't exceed the rated worker weight.
Magnetic base anchors work on steel decking and can be strong, but the magnet's rating has to exceed 5,000 pounds of pull force, which is different from holding force on a clean flat surface. They're rated for specific steel thicknesses. On thin-gauge decking under galvanizing or paint, real grip drops below the nameplate. Pull-test any magnetic system before you trust it.
No steel deck and no option to penetrate for a through-bolt? Your best bet is usually a certified dead-weight anchor or a strap-over anchor wrapped around a structural parapet or mechanical penthouse wall. The parapet has to be structurally capable of the load, which rules out decorative parapets that look solid and aren't.
Check your state plan too. Some OSHA state-plan states add requirements. California's Cal/OSHA has roofing-specific rules under Title 8 that go past the federal minimum [5].
What does it cost to install or set up a fall protection anchor point?
Cost swings hard by anchor type, substrate, and local labor. Here's an honest breakdown at typical market rates. These aren't guaranteed. Get quotes for your specific situation.
Individual certified anchor hardware (ring, plate, or strap anchor): $30 to $300 for the anchor itself, depending on material and load rating.
Welded structural steel anchor installed by a certified welder: $200 to $800 per point, materials and labor included, more in high-cost markets or where access is difficult.
Concrete wedge anchor installed and pull-tested: $150 to $500 per point, including hardware, install, and on-site verification.
Permanent roof anchor through-bolted to structure: $300 to $1,200 per point installed, depending on roof access, membrane type, and whether waterproofing has to be restored afterward.
Portable fall protection anchor point (purchase): $200 to $1,500 by type. A basic D-ring beam strap runs $50 to $100. A certified weighted sled anchor for flat roofs runs $400 to $900. A full portable horizontal lifeline system runs $1,500 to $5,000 for a two-person-rated setup.
Engineering review for custom anchor design: $500 to $2,500 depending on scope.
The system cost matters more than the anchor alone. An anchor is useless without compatible connectors, a harness rated for your worker's weight (ANSI Z359 harnesses in the US are typically rated to 310 lbs [4]), and a lanyard or SRL matched to the fall clearance you actually have. Budget for the system, not the hardware line item.
Now set that against the alternative. OSHA fall protection penalties reach up to $16,550 per serious violation and up to $165,514 for willful or repeated violations as of 2024 [6]. A fatal fall and the wrongful-death lawsuit that follows is a different category of cost entirely.
How should a fall protection plan document the anchor points?
When OSHA requires a written fall protection plan (mandatory for certain construction activities, smart for all of them), the plan has to identify the specific anchor points for each work area. "Use approved anchors" satisfies nobody, least of all an inspector.
A plan that holds up includes:
- The specific location of each anchor point, described well enough that a worker can find it
- The type of anchor at each point
- The rated capacity and the basis for it (manufacturer certificate, engineering drawing number, pull-test record)
- Who installed or verified it
- The system components that connect to that anchor (connector, lanyard/SRL model, harness type)
- Any restrictions (max workers, required substrate conditions)
- Inspection requirements and how records get kept
For ongoing work at a fixed facility, a site map showing anchor locations plus a matching anchor log works well. For construction where locations move as the job progresses, the competent person documents anchor decisions as part of daily or phase-specific planning.
Competent person designation carries weight here. The competent person for fall protection, required under 29 CFR 1926.502, has to be capable of spotting fall hazards and authorized to fix them on the spot [2]. That's more than a title on a form. It's someone with real training in fall protection systems. If your team needs that base, an OSHA training course is where to start, and an OSHA 30 for supervisors covers fall protection in decent depth.
If there's an incident, the incident report and the fall protection plan are the first two things OSHA asks for.
What are the most common anchor-related OSHA citations and how do you avoid them?
Fall protection has been OSHA's most-cited construction standard for more than a decade. In federal fiscal year 2023, Fall Protection General Requirements (1926.501) topped the list with 7,271 violations, and both Fall Protection Training (1926.503) and Scaffolding landed in the top ten [7]. Anchor-specific failures show up under 1926.502 citations.
The anchor problems inspectors find most:
No anchor at all. Workers on roofs or elevated areas with no tie-off, usually because someone figured "we're only up there a couple minutes." OSHA has no minimum time threshold. Two minutes at six feet above a lower level with a fall hazard requires fall protection.
Capacity not verified. The crew tied off to something that looks structural but was never rated or documented. The burden is on the employer to prove the anchor meets the standard, not on OSHA to prove it doesn't.
Non-independent anchor. Tied off to scaffolding that's also holding the platform, or a roof anchor fastened only to membrane instead of the structural deck.
Wrong anchor for the system. A fall arrest anchor is not automatically right for a fall restraint system. Restraint works differently: the anchor gets positioned so the worker physically can't reach the fall hazard, rather than catching them after they fall. Distinct systems, distinct anchor logic.
Anchor not inspected. No documented pre-use inspection, or an anchor with visible damage that should have been pulled from service.
The fix for every one of these is the same. A trained competent person, written procedures, pre-task planning, and anchors that get selected, installed, and verified before work starts instead of improvised in the moment. Review your full PPE program alongside the fall protection plan too, since harnesses and connectors count as PPE under OSHA's definitions and carry their own inspection rules.
Frequently asked questions
What is the minimum OSHA rating for a fall protection anchor point?
OSHA requires fall protection anchor points to support at least 5,000 pounds per attached worker, under 29 CFR 1926.502(d)(15) for construction and 29 CFR 1910.140(c)(13) for general industry. The alternative is a qualified person (typically a licensed PE) designing the anchor to at least twice the maximum anticipated arrest force, which often lands lower in required capacity but demands engineering documentation.
Can I use rebar as a fall protection anchor on a construction site?
No. Rebar is not an approved fall protection anchor. Even if an exposed rebar stub could hold 5,000 pounds in a static test, it usually isn't independent of the work platform, it hasn't been rated or certified for the use, and its real capacity in a dynamic fall is unknown. OSHA cites this as a non-compliant anchor under 29 CFR 1926.502.
How many workers can attach to one anchor point?
Most manufactured anchors are rated for one worker. Two workers on one anchor means it has to support 10,000 pounds (5,000 per worker). Always check the manufacturer's documentation for multi-worker ratings. Never assume a single-worker anchor can carry two people just because two connectors physically fit on it.
What is a portable fall protection anchor point and when should I use one?
A portable fall protection anchor point is a self-contained anchor that attaches without permanent installation: a beam clamp, I-beam trolley, roof strap anchor, or weighted sled. They fit temporary work where drilling or welding isn't practical. Always confirm the portable anchor's rated capacity meets the 5,000-pound requirement for the specific substrate you're using it on.
Does OSHA require anchor points to be above the worker's head?
OSHA doesn't set a specific minimum height above the D-ring in most applications, but placing the anchor as high as possible above the dorsal D-ring cuts free-fall distance and total clearance needed. Anchors below D-ring level increase fall distance sharply. Some self-retracting lifelines are designed and approved for below-D-ring or horizontal anchorage; check the manufacturer's instructions before using an SRL in any non-overhead position.
Who is allowed to install and certify a fall protection anchor?
It depends on type. Welded anchors need a certified welder. Concrete anchors can be installed by a competent worker following manufacturer specs, but should be pull-tested when substrate quality is uncertain. Custom or engineered anchor systems, and certification of horizontal lifeline end anchors, require a qualified person, in practice a licensed PE. Pre-engineered, certified anchors from a manufacturer don't need independent PE sign-off if installed per instructions.
How often do fall protection anchor points need to be inspected?
Anchors must be inspected before each use, under 29 CFR 1926.502(d)(21) for personal fall arrest systems. Beyond that, a competent person should formally inspect permanent anchors periodically, typically at least annually or after any event that could affect integrity, such as a fall arrest, nearby structural work, or extreme weather. Any anchor that has arrested a fall comes out of service until a qualified person inspects and clears it.
What is the difference between a fall arrest anchor and a fall restraint anchor?
A fall arrest anchor is part of a system that catches a worker after they start to fall, and it must meet the 5,000-pound requirement. A fall restraint anchor keeps the worker from ever reaching the edge by limiting movement, so no fall happens. Restraint anchors can carry lower capacity requirements since they don't absorb arrest forces, but placement must be calculated so the worker physically cannot reach the hazard. The two systems use different engineering logic and aren't interchangeable.
Do OSHA's anchor rules apply to ladders and ladder safety systems?
Yes, with specific provisions. Ladder safety systems and personal fall arrest on fixed ladders (above 24 feet) fall under 29 CFR 1910.28 for general industry and 29 CFR 1926.1053 for construction. The anchorages for ladder safety systems, cable and rail included, must meet qualified design requirements. OSHA updated its walking-working surfaces and fall protection standards for general industry effective January 17, 2017, including fixed ladder fall protection.
What ANSI standard covers fall protection anchor testing?
The ANSI/ASSP Z359 series covers fall protection equipment in the US. Anchor connectors and anchorage devices fall mainly under ANSI/ASSP Z359.12 (connecting components) and Z359.18 (anchorage systems and equipment). Manufacturers who test to these standards provide documentation that their products meet the load requirements OSHA references. Request and keep the manufacturer's test certifications for any anchor you buy and use.
Can scaffolding be used as a fall protection anchor point?
Only if a qualified person verifies that the specific scaffold member can carry the arrest load on top of all other scaffold loads, and that verification is documented. Scaffold tube-and-clamp connections are generally not certified as fall arrest anchors by scaffold manufacturers. Using scaffold cross-members as tie-off points without engineering verification is a common OSHA citation. Most of the time you need a separately designed, certified anchor independent of the scaffold.
What happens if a fall protection anchor fails during an OSHA inspection?
OSHA cites the employer under 29 CFR 1926.502 (construction) or 1910.140 (general industry). A serious violation, where the anchor is non-compliant but hasn't caused injury, carries penalties up to $16,550 per violation as of 2024. Willful violations, where the employer knew and ignored the requirement, reach up to $165,514 per violation. An anchor failure that caused a fatality triggers a full fatality investigation, maximum penalties, and potential criminal referral.
Is there a difference between anchor requirements for roofing versus other construction?
Federal OSHA's 5,000-pound per worker standard applies to roofing exactly as it does to other construction. What differs is the trigger points: 6 feet above a lower level on any roof, with explicit requirements for steep-roofing over 4:12 pitch under 29 CFR 1926.502(b). Some state-plan states add roofing-specific requirements. California's Cal/OSHA Title 8 is one example where state rules go past the federal baseline.
Where should I put anchor points in a warehouse with workers on elevated platforms?
In a warehouse, fall protection for elevated platforms and fixed workstations usually starts with guardrails, since they're passive and don't depend on a worker doing anything. Where personal fall arrest is used, anchors go overhead, fastened to certified structural members like wide-flange beams or dedicated overhead anchor rails rated to the required load. Have a licensed PE assess the structural capacity of existing building members before designating them as anchors, especially in older or pre-engineered metal buildings.
